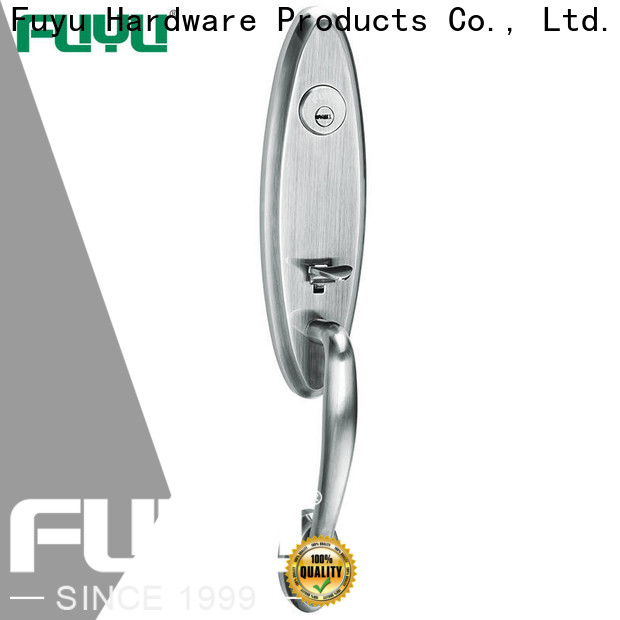

high-quality best lock for bedroom door top with latch for shop

MAIN SPECIFICATIONS

Apply to all kinds of wooden doors and metal doors.
Global first-creative revolutionary design for lock case.
Mortise type.
ANSI/BHMA Grade 2 A156.13 standard.
800,000 cycles.
Patented products.
Fire-proof mechanism.
Anti-drill cylinder.
Construction key function.
Anti-insert and silent-closed three-piece latch.
Anti-cut bolt.
Anti-panic.
Auto-locking.
Easily reversible for left and right handing.

PATENT CERTIFICATE

high-quality best lock for bedroom door top with latch for shop-1

ANSI/BHMA GRADE 2 CERTIFICATE BY INTERTEK

high-quality best lock for bedroom door top with latch for shop-2

ASSEMBLY ILLUSTRATION

high-quality best lock for bedroom door top with latch for shop-3

SUPPLYING FUNCTION FOR RESIDENTIAL

Entrance

Dummy

Two-open Door

BOX DESIGN

high-quality best lock for bedroom door top with latch for shop-4

SUPPLYING FUNCTION FOR ANSI/BHMA STANDARD

FUYU CODE

DESCRIPTION

FUNCTION

ANSI ANSI NO.

82F01

Passage Latch

Latchbolt retracted by knob/lever from either side at all times.

F01

82F02

Privacy/Bathroom Lock

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted

by emergency turn outside or thumbturn inside.

F02

82F14

Store/Utility Room Lock

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key from either side.

F14

82F16

Double Cylinder Lock

Deadbolt operated by key from either side.

F16

82F17

Cylinder x Thumbturn Lock

Deadbolt thrown or retracted by key outside or thumbturn inside.

F17

82F18

Cylinder w/o turn Lock

Deadbolt thrown or retracted by key from one side.No trim on opposite side.

F18

82F21

Dormitory/Bedroom Lock

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key outside or thumbturn inside.

F21

82F25

Storeroom with grip handle Lock

Latchbolt retracted by thumb button from either side.Deadbolt operated by key from either side.

F25

DETAILS DESCRIPTION FOR CYLINDER

high-quality best lock for bedroom door top with latch for shop-5

Anti-drill American sytle cylinder.
With construction key function.
Solid brass cylinder(Brass housing, plugs and pins).
With American angle-cut-pin technology, each pin is
different from both angle and length, ensure top
security performance.
Processed with CNC (Computer Numeric Control)
machines, key-combination is over international
standard.

Each cylinder with 5 pcs cupronickel
owner keys, 1 pc brass construction and
1pc installation key. Angle-cut-pin
keyway, each set of keys with a solo
keyway code tag, make your keys not to
be duplicated by others.
Thickness of Key is 3.0mm.

THE STRUCTURE OF CYLINDER WITH ANGLE-CUT-PIN A B KEYS

high-quality best lock for bedroom door top with latch for shop-6

high-quality best lock for bedroom door top with latch for shop-7
