Qty/Ctn: 4 sets
G.W/Ctn: 22 kgs
Door Thickness Range
Thin : 32-40mm
Extra Level 1: 51-60mm
Extra Level 2: 61-72mm
Brass housing, plug and pins
Angle-cut-pin technology, 5 pins 5 pcs owner keys+1 pc construction key+1pc installation, solid brass material, thickness 3.0mm
Apply to all kinds of wooden doors and metal doors.
Global first-creative revolutionary design for lock case.
ANSI/BHMA Grade 2 A156.13 standard.
Construction key function.
Anti-insert and silent-closed three-piece latch.
Easily reversible for left and right handing.
ANSI/BHMA GRADE 2 CERTIFICATE BY INTERTEK
SUPPLYING FUNCTION FOR RESIDENTIAL
SUPPLYING FUNCTION FOR ANSI/BHMA STANDARD
|FUYU CODE||DESCRIPTION||FUNCTION||ANSI ANSI NO.|
Latchbolt retracted by knob/lever from either side at all times.
|Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted |
by emergency turn outside or thumbturn inside.
Store/Utility Room Lock
|Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key from either side.|
|Double Cylinder Lock||Deadbolt operated by key from either side.|
Cylinder x Thumbturn Lock
|Deadbolt thrown or retracted by key outside or thumbturn inside.|
Cylinder w/o turn Lock
Deadbolt thrown or retracted by key from one side.No trim on opposite side.
|Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key outside or thumbturn inside.|
Storeroom with grip handle Lock
|Latchbolt retracted by thumb button from either side.Deadbolt operated by key from either side.|
DETAILS DESCRIPTION FOR CYLINDER
Anti-drill American sytle cylinder.
With construction key function.
Solid brass cylinder(Brass housing, plugs and pins).
With American angle-cut-pin technology, each pin is
different from both angle and length, ensure top
Processed with CNC (Computer Numeric Control)
machines, key-combination is over international

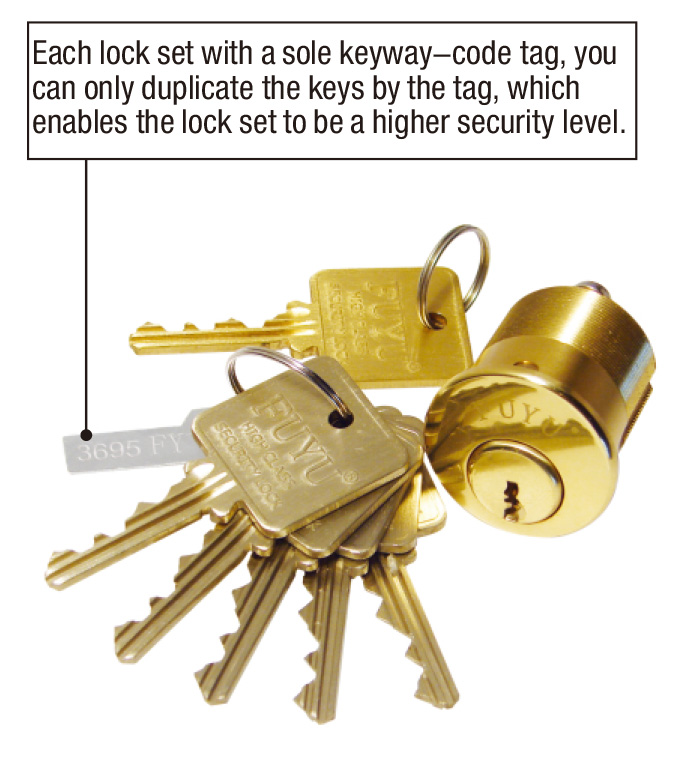

Each cylinder with 5 pcs cupronickel
owner keys, 1 pc brass construction and
1pc installation key. Angle-cut-pin
keyway, each set of keys with a solo
keyway code tag, make your keys not to
be duplicated by others.
Thickness of Key is 3.0mm.

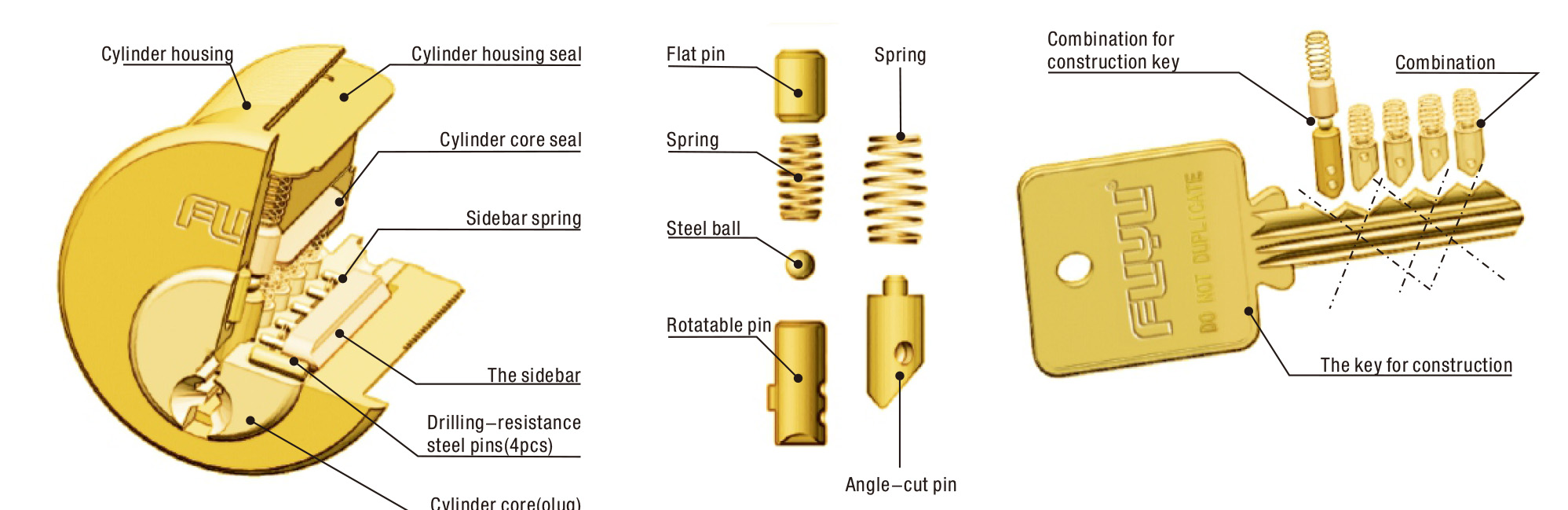

THE STRUCTURE OF CYLINDER WITH ANGLE-CUT-PIN A B KEYS
