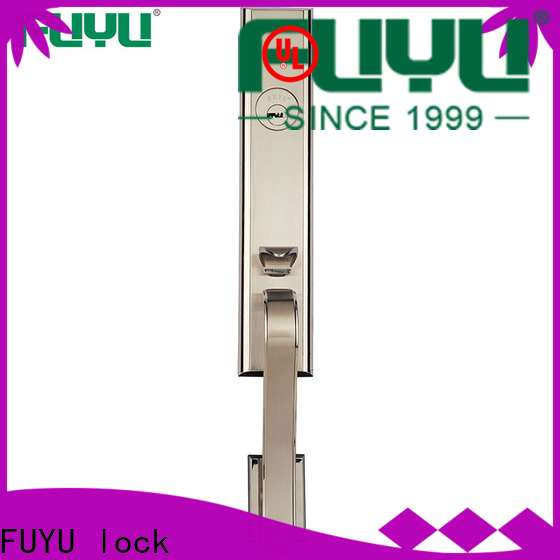

Tubular latch and deadbolt
Latch Solid brass for latch tongue.High quality steel for casing, precise mechanism inside, strong and stable.Solid stainless steel for forend and strike plate.Backset: Standard: 60mm (2 3/8”) Customized: 70mm (2 3/4”)
Material | Zinc alloy die-casting |
Deadbolt & Latch | H59 solid brass |
Cylinder | H59 solid brass |
Finish Color | AB, AC, AN, DAB, DAC, DSN, GP, OAC, ORB, ORBH, SG, SN |
Backset | 70mm |
Keyway | Angle-cut-pin |
Weight | 4kg |
Application | Wood door, metal door |
Door Thickness | 35-54mm |
Function | Entrance, dummy, two-open door |
Reinforced with a big & hardened steel insert, anti-saw, higher security.High-saw, higher security.High quality steel for casing, precise mechanism inside, strong and stable.Solid stainless steel for forend and strike plate.Backset: 60mm (2 3/8”) – 70mm (2 3/4”) adjustable.
The structure of 86 series cylinder (Double-row-pin with construction key function)
High-tech solid brass cylinder (brass for housing, core/plug, pins and nut)
Machined by precise CNC (Computer Numeric Control) equipments according to the most strict QA stardard.
Keyway: Double-Row-Pin technology, 10 pins, pin-combinations are much more than international standard, extremely security.
Construction key function available: Each cylinder with 5 pcs OWNER keys + 1 pc CONSTRUCTION key, all keys are made by solid brass, thickness 2.5mm.
