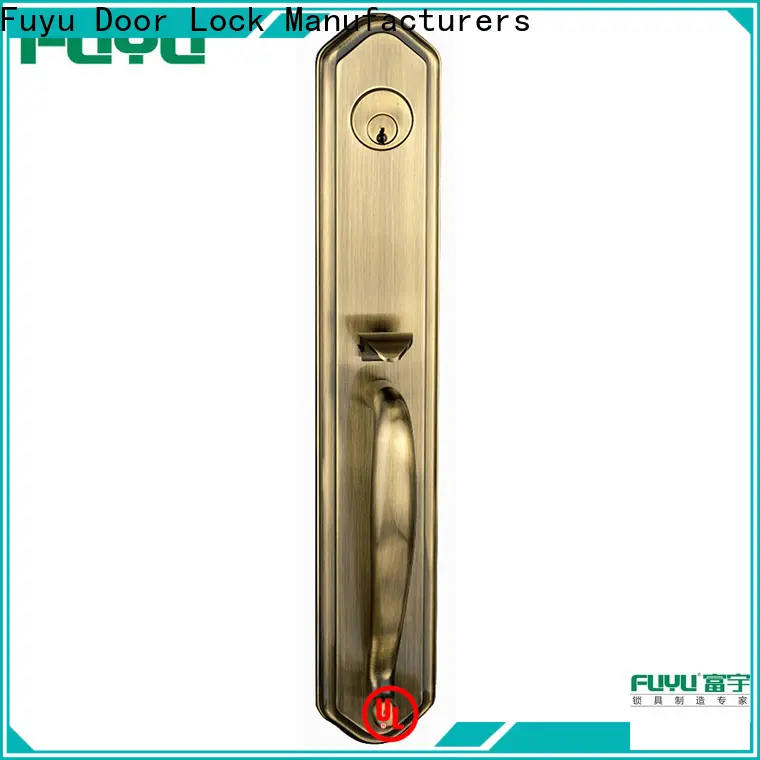

FUYU oem best door locks supplier for shop
1. With highly efficient production, FUYU has a short lead time. Processed by double-row-pin technology, its keyway provides extremely security
2. This product has been widely used in the market and has a broad market prospect. Polished with good finishes, it remains glossy and new even after years of uses
3. The product is superior in the quality, excellent in the performance, and long in lifespan. It offers maximum protection and security to the householders
4. Our strict scientific quality management system ensures the product is 100% qualified. This product is characterized by fingerprint resistance
5. The product provides customers with the desired functionality. Its surface treated with plating enables its rust resistance
MAIN SPECIFICATIONS
Apply to all kinds of wooden doors and metal doors.
Global first-creative revolutionary design for lock case.
Mortise type.
ANSI/BHMA Grade 2 A156.13 standard.
800,000 cycles.
Patented products.
Fire-proof mechanism.
Anti-drill cylinder.
Construction key function.
Anti-insert and silent-closed three-piece latch.
Anti-cut bolt.
Anti-panic.
Auto-locking.
Easily reversible for left and right handing.
PATENT CERTIFICATE
ANSI/BHMA GRADE 2 CERTIFICATE BY INTERTEK
ASSEMBLY ILLUSTRATION
SUPPLYING FUNCTION FOR RESIDENTIAL
Entrance
Dummy
Two-open Door
BOX DESIGN
SUPPLYING FUNCTION FOR ANSI/BHMA STANDARD
| FUYU CODE | DESCRIPTION | FUNCTION | ANSI ANSI NO. |
82F01 | Passage Latch | Latchbolt retracted by knob/lever from either side at all times. |
F01 |
82F02 |
Privacy/Bathroom Lock | Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by emergency turn outside or thumbturn inside. | F02 |
82F14 |
Store/Utility Room Lock | Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key from either side. |
F14 |
82F16 | Double Cylinder Lock | Deadbolt operated by key from either side. | F16 |
82F17 | Cylinder x Thumbturn Lock | Deadbolt thrown or retracted by key outside or thumbturn inside. | F17 |
82F18 |
Cylinder w/o turn Lock | Deadbolt thrown or retracted by key from one side.No trim on opposite side. | F18 |
82F21 |
Dormitory/Bedroom Lock | Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key outside or thumbturn inside. | F21 |
82F25 | Storeroom with grip handle Lock | Latchbolt retracted by thumb button from either side.Deadbolt operated by key from either side. | F25 |
DETAILS DESCRIPTION FOR CYLINDER
Anti-drill American sytle cylinder.
With construction key function.
Solid brass cylinder(Brass housing, plugs and pins).
With American angle-cut-pin technology, each pin is
different from both angle and length, ensure top
security performance.
Processed with CNC (Computer Numeric Control)
machines, key-combination is over international
standard.
Each cylinder with 5 pcs cupronickel
owner keys, 1 pc brass construction and
1pc installation key. Angle-cut-pin
keyway, each set of keys with a solo
keyway code tag, make your keys not to
be duplicated by others.
Thickness of Key is 3.0mm.
THE STRUCTURE OF CYLINDER WITH ANGLE-CUT-PIN A B KEYS
Company Features
1. Established years ago, Zhongshan Fuyu Hardware Products Co., Ltd. is a China-based manufacturing company. We are skilled in best door locks designing and production.
2. Zhongshan Fuyu Hardware Products Co., Ltd. has strong R&D capability and superior process technologies for handle door lock .
3. Our company bears social responsibilities. We offset emissions released during the value creation process through climate protection projects. This has been confirmed by official certification.
In future, we will always try our best to make high quality, popular and reliable chinese door lock products for our customers.
